SHD SECTOR EXPERTISE

Automotive

As a High Performance Automotive industry leader, SHD supply a proven range of products to multiple OEMs alongside a developing range of new technologies with a focus on sustainable materials.

Market Expertise

Automotive industry

The SHD Group has grown its capabilities and capacity over the years with an unwavering strategic commitment to maintain the highest levels of support for its global automotive customer base.

SHD's fundamental ethos is one where service, quality and innovation are at the core of daily activity, underpinned by a constant focus on short lead times and market leading technical support. The same range of industry leading, high performance materials are manufactured from all SHD sites around the globe.

SHD is now firmly established as an industry-leading supplier of advanced composite materials to the High Performance Automotive sector, delivering a proven range to multiple OEMs and Tier suppliers across the globe. SHD remains focused on developing innovative materials technologies to meet changing market demands, with a particular commitment to enhanced sustainability throughout the supply chain. Below is a quick guide to product selection across typical application area. All products available with a wide array of reinforcement types to match specific performance needs.

FIND A PRODUCT

We offer a wide range of tooling and component prepregs suitable for autoclave, press and oven curing. Using our product selector guide you can browse our products by process, type, resin system and market to find the right product for your needs.

See All Products

Application Areas

01

Cosmetic and trim

LTC250-2XL

DOWNLOAD DATA SHEET
Low temperature cure epoxy (40-60°C), with good toughness and good visual clarity. Ideal for prototyping.

MTC510

DOWNLOAD DATA SHEET
Industry leading, high resin clarity and reduced susceptibility to discoloration for all visual applications. Typically supplied with a range of high visual quality reinforcements. 130°C max dry Tg.

MTC275

DOWNLOAD DATA SHEET
General purpose system also with excellent optical clarity that can be OOA processed (with care) if required.

MTB350

DOWNLOAD DATA SHEET
A 30% bio-derived epoxy component system with an exceptional outlife at 20°C of 6 months. Excellent all-round properties and particularly suitable for use with natural fibers and recycled fiber mats. Service up to 140-150°C possible.

VTC401

DOWNLOAD DATA SHEET
Toughened epoxy system with versatile curing (65°C-120°C) and max Tg dry of 143°C. Excellent for prototyping and series production, with good OOA processing capability.

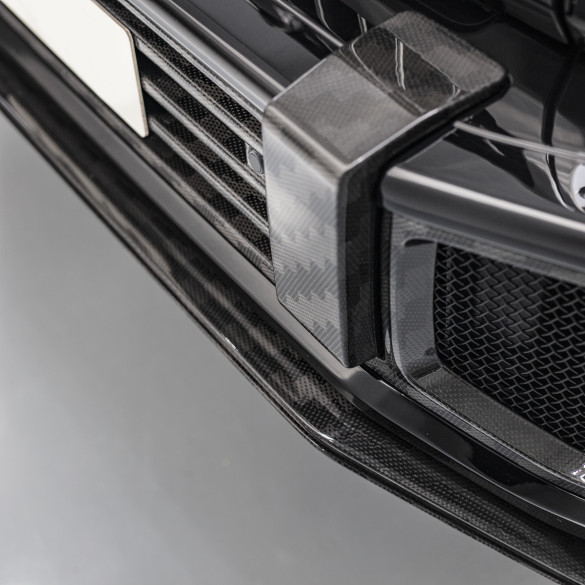

Detail big weave G 09
02

Structural Components

MTC811

DOWNLOAD DATA SHEET
Highly toughened epoxy system with max (dry) Tg of 121°C. Excellent impact and fatigue performance. Typical applications in general structures, wheel arches and impact areas.

MTC400-1

DOWNLOAD DATA SHEET
Well-established toughened system with Tg of 145°C (135°C/1hr) and after p/c max Tg of 205°C. Excellent retention of properties up to 150°(dry). Widely used on chassis and structural components. Proven pedigree and supported by extensive database.
03

Engine bay/high temperature

MTC400

DOWNLOAD DATA SHEET
Curing 135°C to 200°C, a toughened epoxy system with max dry Tg of 225°C and wet Tg > 160°C. Excellent property retention temperature up to 180°C, with good chemical resistance and typically used for components around the engine and pressure pipes.

CEM100

DOWNLOAD DATA SHEET
Cyanate ester system with service temperature of 350°C, from a 250°C initial cure. Extended exposures to 400°C possible, produces durable components with excellent high temperature performance. Typically brake ducts and heat shields.

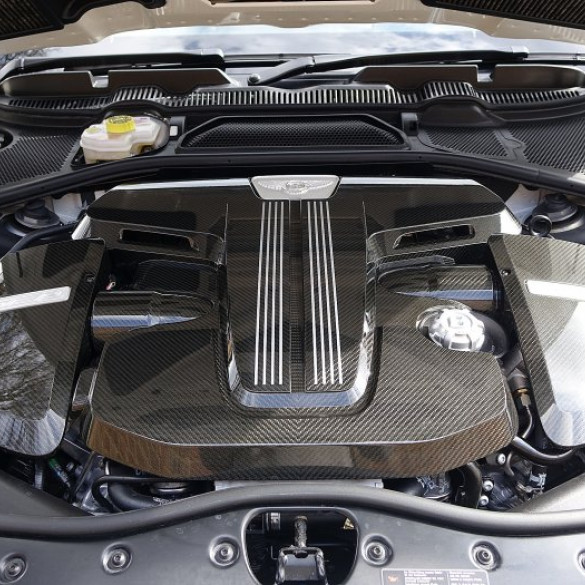

Bentley
04

Battery box and fire containment

FRVC411

DOWNLOAD DATA SHEET
A versatile fire retardant epoxy component system with a low minimum temperature cure and increased toughness. Rated UL94 V0 rated in certain constructions.

MTC510FRB

DOWNLOAD DATA SHEET
General purpose flame retardant system

PS200

DOWNLOAD DATA SHEET
Highly flame retardant system offering thermal and fire protection. Potential ability to cope with the high pressures and rapid temperature excursions up to around 1000°C, typical of a Li-ion battery thermal runaway events. UL94 V0 rated. A and meets fire protection and insulation standards ISO 2685 and AC 20-135, Revised 1990.
Untitled design
05

Body Panels

MTC510

DOWNLOAD DATA SHEET
Industry leading, high resin clarity and reduced susceptibility to discoloration for all visual applications. Typically supplied with a range of high visual quality reinforcements. 130°C max dry Tg.

OPS75

DOWNLOAD DATA SHEET
Rapid deposition and versatile cure 2-part body panel material. Max dry Tg 140°C. Reduced pre-paint preparation with excellent retained stability in surface finish for class A. Can be processed in or out of autoclave. Supplied with a unique range of panel densities, thicknesses and stiffness.

APS75

DOWNLOAD DATA SHEET
Rapid deposition and versatile cure 2-part body panel material. Max dry Tg of 170°C. Reduced pre-paint preparation, with good surface finish retention. Can be processed in or out of autoclave.
Davidcohen 125621 unsplash
06

Film adhesives

MTFA500

DOWNLOAD DATA SHEET
120°C curing general purpose epoxy adhesive film with max Tg of 140°C.

VTFA400

DOWNLOAD DATA SHEET
Versatile cure (65-120°C), general purpose epoxy adhesive film with max Tg of 135°C.

MTFA400

DOWNLOAD DATA SHEET
130-150°C curing general purpose epoxy adhesive film with max Tg of 170°C.
Film adhesives
