SHD SECTOR EXPERTISE

Tooling

SHD is an established market leader in the supply of tooling materials to Industrial and Aerospace customers across the globe.

Market Experise

Tooling Systems

The SHD group of companies has purposely evolved over the years so that it can continue to support its global customer base with the same range of high performance prepreg materials - from multiple manufacturing sites.

SHD's fundamental ethos is one with service, quality and innovation remaining at the core of daily activity, underpinned by a constant focus on short lead times and market leading customer support.

SHD has been an established market leader in the supply of tooling materials across global Industrial and Aerospace customers for over 10 years.

FIND A PRODUCT

We offer a wide range of tooling and component prepregs suitable for autoclave, press and oven curing. Using our product selector guide you can browse our products by process, type, resin system and market to find the right product for your needs.

See All Products

Application Areas

01

Autoclave

LTC102

DOWNLOAD DATA SHEET
35-65°C initial cure, with a 3 days outlife at 20°C. Max Tg after post-cure of 214°C. Epoxy tooling system with a reduced minimum curing temperature, practical outlife and excellent service.

LTC210

DOWNLOAD DATA SHEET
45-70°C initial cure, with a 4 days outlife at 20°C. Max Tg after post-cure of 20°C. Most commonly used epoxy tooling system, with excellent combination of low temperature cure, high service temperature, good outlife and handling.

LTB310-1

DOWNLOAD DATA SHEET
30% bio-based content. 45°C to 70°C initial cure with a 4 days outlife at 20°C. Max Tg after post-cure of 201°C. Increasingly adopted for quick sustainability gains, offers an excellent combination of low temperature cure, high service temperature. Can also be supplied on natural fiber and FCH fabrics, but with handling limitations.

LTC216-3

DOWNLOAD DATA SHEET
Cure range of 45°C - 70°C with maximum onset Tg after post cure of 218°C. 7 days out life at 21°C. Epoxy tooling system with extra room temperature out life for larger tools, warmer ambient temperatures. Excellent handling.

LTC410

DOWNLOAD DATA SHEET
Cure range of 65°C - 80°C with maximum onset Tg after post cure of 192°C. 21 days out life at 21°C. A robust tooling system for general applications, with extra-long out life.

LTC400

DOWNLOAD DATA SHEET
Cure range of 65°C - 80°C with maximum onset Tg after post cure of 207°C. 30 days out life at 21°C. A robust tooling system for aerospace and general applications, with an unmatched extra-long out life.

BMI-1SC

DOWNLOAD DATA SHEET
Cure range of 160°C - 180°C with maximum onset Tg after post cure of 350°C. 30 days out life at 21°C (70°F). A Bismaleimide system with very high service temperatures, providing extended tool life.
02

OOA Options

OTS65

DOWNLOAD DATA SHEET
65°C initial cure with a 21 days outlife at 20°C. Max Tg after post-cure of 125°C unique Out of Autoclave curing tooling system with rapid lay-up times, extended outlife and excellent surface finish.

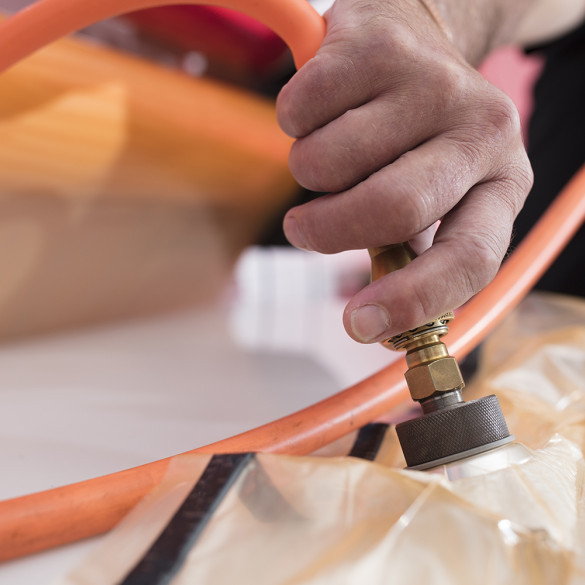

SHD 220 by Electric Egg 5ds 9952 small
